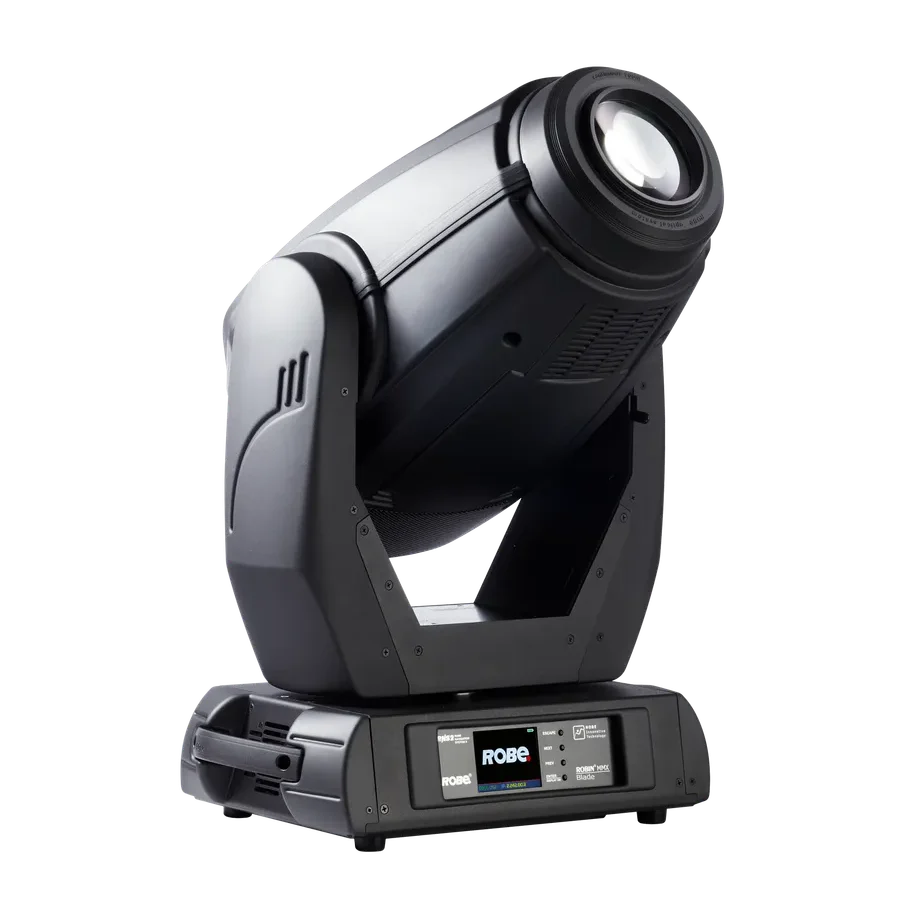

Robe MMX Blade

The Robe Robin MMX Blade is a high-output, feature-rich discharge moving head spotlight engineered for professional lighting applications, including theatre, television, and concert touring. Powered by a Philips MSR Platinum 35 lamp, its brightness rivals traditional 1,200 W fixtures while maintaining a compact form factor. This makes it an excellent choice for designers who require powerful output but need the flexibility of a more portable unit. The fixture’s parabolic dichroic glass reflector ensures maximum light efficiency, delivering exceptionally clear and intense beam projection suitable for both distant projection and tight beam effects. Its robust build and weather-resistant internal optics provide the reliability needed in diverse production environments.

One of the MMX Blade’s standout features is its framing shutter system, comprising four independently controlled shutter blades housed within a rotating frame that can pivot ±45°. This innovative Module can produce precise beam shaping—perfect for cutting light around objects or isolating performers—and it can rotate a full 90° to adapt shapes to changing stage directions. The framing system also enables dynamic mid-air effects through rapid blade movement sequences. Complementing this are two gobo wheels (one rotating and one static), a dual animation wheel for fire and water effects, and a 5-facet rotating prism. The unit also includes smooth iris control, variable frost, and motorized zoom and focus, providing wide creative freedom for designers.

In terms of control and integration, the MMX Blade supports DMX-512, RDM, Art-Net, MA Net, and MA Net2 protocols, with optional wireless CRMX functionality. It can be operated in multiple DMX modes and features a QVGA touchscreen interface with gravity-sensing entry and battery backup. The fixture includes the Robe-exclusive Hot-Spot lamp control system for remote adjustment of beam uniformity and hotspot intensity. Additional features include built-in fault analysis tools and fine parameter control with 8- or 16-bit resolution. Robust rigging attachments, a pan/tilt-lock mechanism, and quiet operation make the MMX Blade suitable for telecasts or intimate theatre where noise sensitivity is a concern.

Overall, the Robe Robin MMX Blade is a tour-ready powerhouse offering exceptional brightness, versatile beam shaping through its innovative framing system, and rich feature sets such as prisms, gobos, and animation effects. Its balance of compact design, powerful optics, and creative control tools makes it a strong choice for lighting professionals seeking high-performance fixtures without compromising on flexibility or durability. Its capabilities address the demands of both grand productions and intimate venues, empowering designers to shape light in bold and dynamic ways.
