Avid E6L-192 Engine

The Avid E6L-192 Engine is a powerhouse audio/video processing and distribution module in Avid’s E6L family, designed to seamlessly integrate with the Avid S6L and S4L live audio consoles. As a core component of modular live sound systems, this engine delivers substantial I/O capacity, DSP power, and networked audio/video format conversion, making it ideal for broadcast trucks, fixed installations, theater productions, and world-class live touring. Engineered to work within Avid’s E6L platform, the E6L-192 Engine brings full redundancy, remote control, and comprehensive system flexibility, enabling engineers to expand total channel and routing capabilities with minimal footprint.

In terms of key capabilities, this engine includes 192 audio inputs and outputs through six MADI ports, allowing it to transport high-channel-count audio over optical or copper cables efficiently. The DSP capability is considerable, processing audio at 96 kHz with a complete suite of plug-ins, including dynamic processors, EQs, reverbs, and delay effects. These channels can be assigned dynamically to complement tasks such as front-of-house mixing, recording, broadcast feeds, or monitor mixes. In addition, the engine supports Dante and I/O expansion via cards, providing versatility across networked audio standards. Clocking options include word clock and MADI clock, ensuring synchronization across complex multi-device systems, while Ethernet connectivity facilitates remote routing, diagnostics, multitasking configurations, and firmware updates.

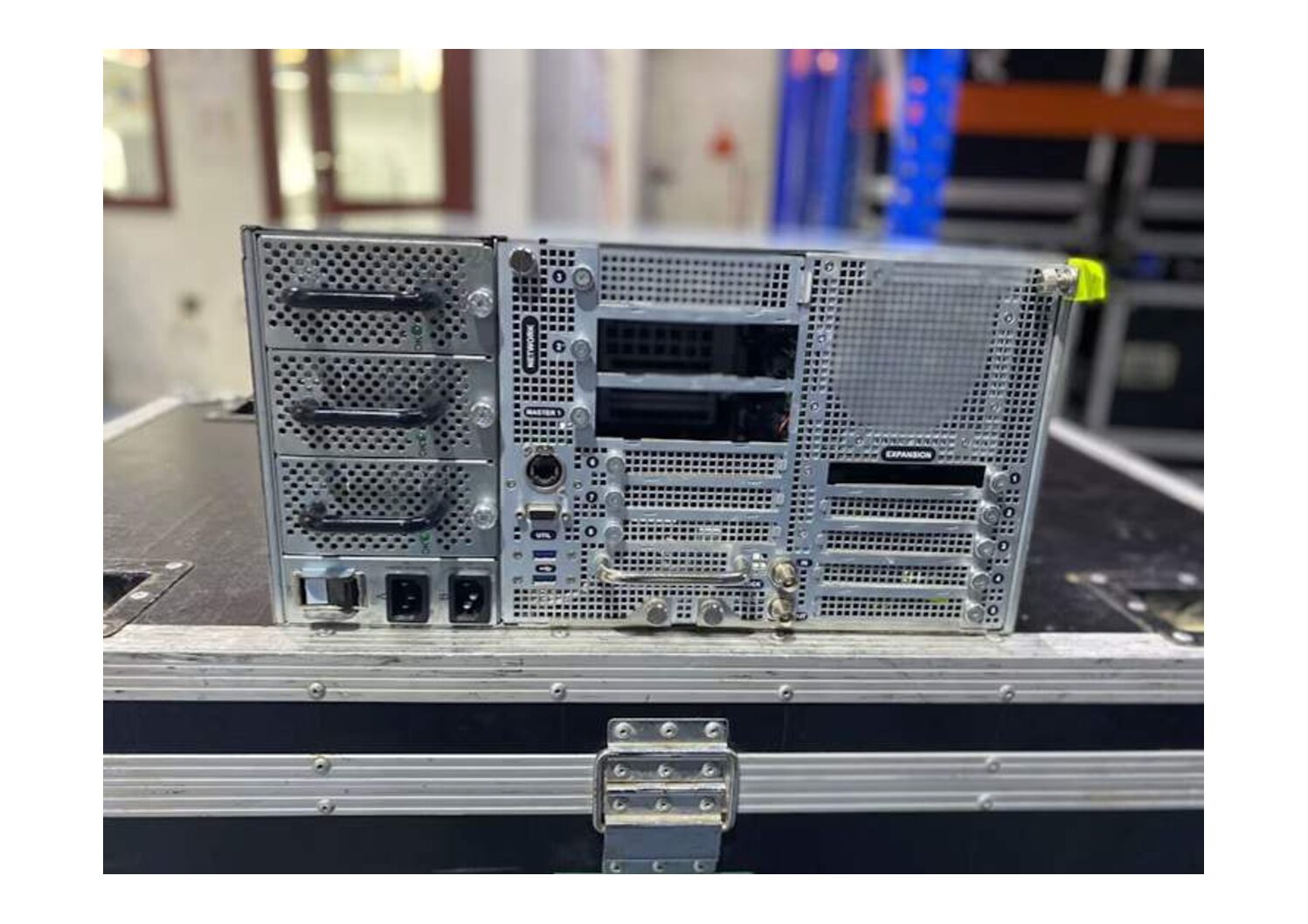

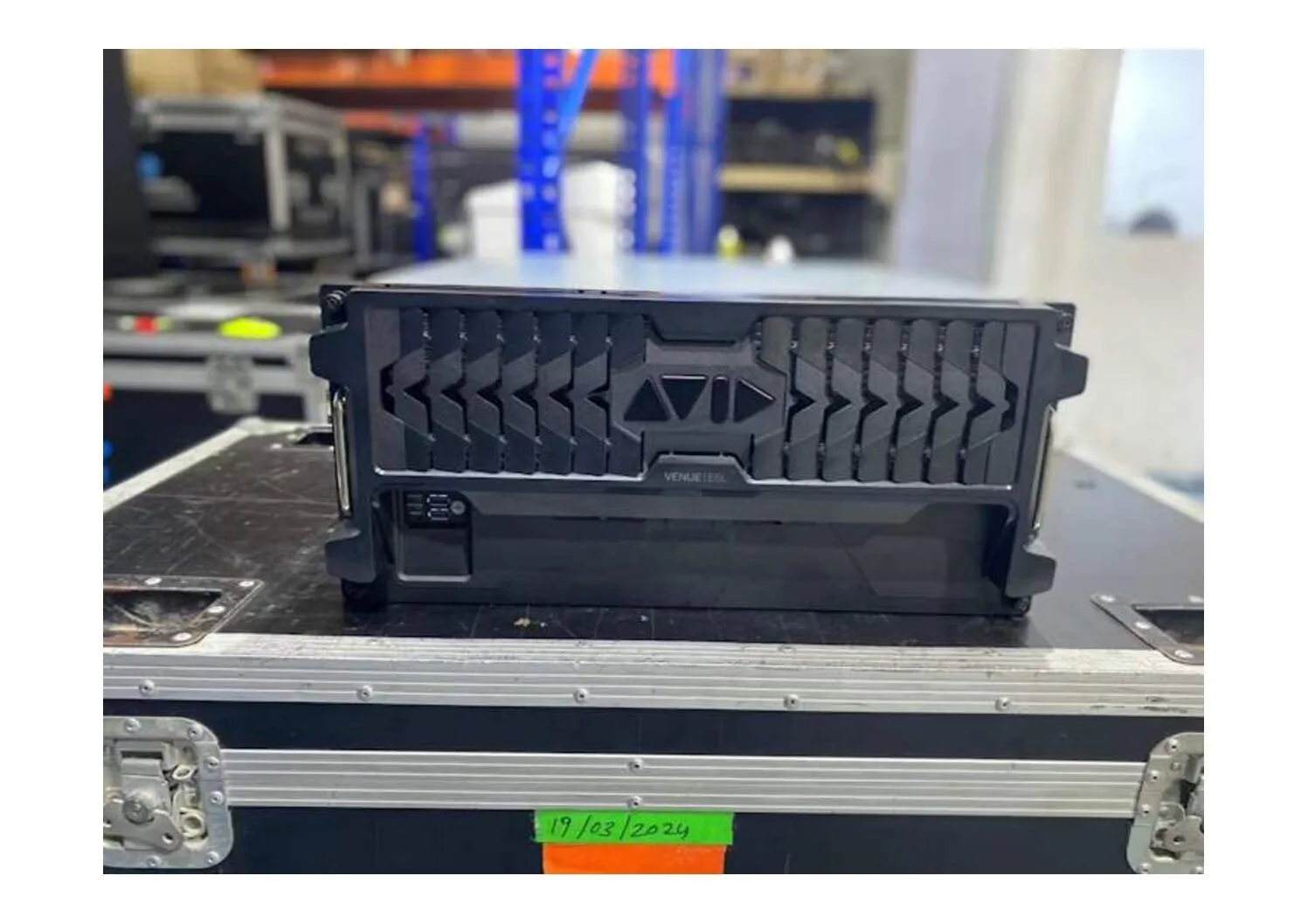

Avid’s modular architecture ensures easy scalability. Multiple E6L-192 Engines can be paired with S6L and S4L frames, enabling configurations with thousands of inputs and outputs, suitable for the biggest events and venues. Engine redundancy is inherent: power supplies, audio buses, and networking pathways are duplicated to protect against single points of failure. Remote monitoring tools show real-time load, temperature, audio routing, and status indicators, all manageable via Avid’s system manager software. The engine’s front-panel design includes redundant MADI ports, Ethernet and word-clock BNC connectors, clear status LEDs, and a compact 2RU chassis optimized for rack use.

In summary, the Avid E6L-192 Engine is an essential module for professional audio environments that demand substantial channel density, diverse signal routing, and resilient performance. Its combination of high channel count, robust DSP capabilities, networked audio compatibility, and built-in redundancy makes it an ideal backbone for sophisticated mixing installations in broadcast, touring, theater, and multi-zone venues. Highly scalable and reliable, it’s a smart investment for audio professionals building a flexible system capable of adapting to evolving production needs.
