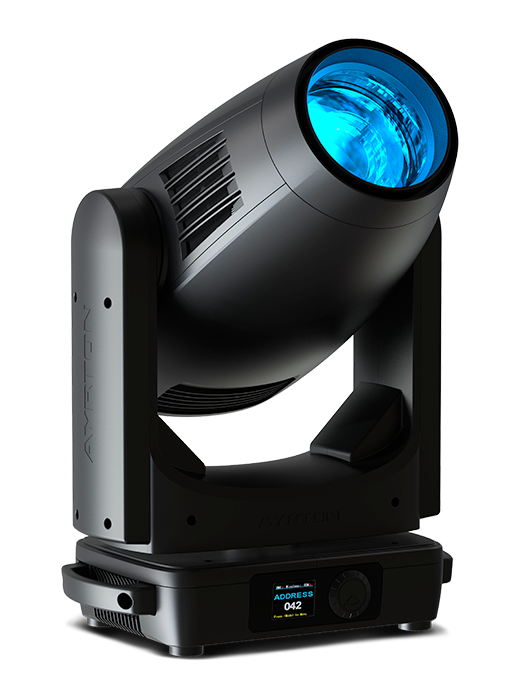

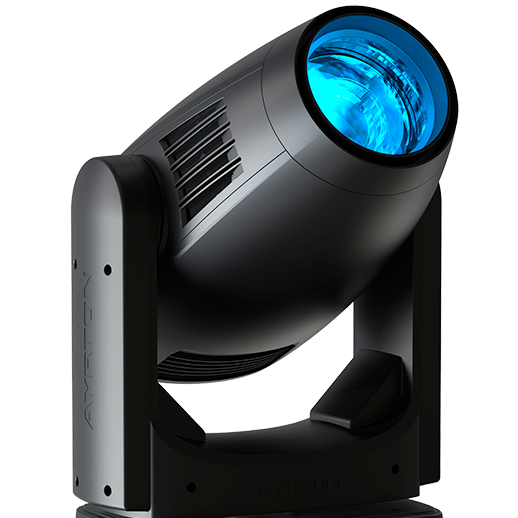

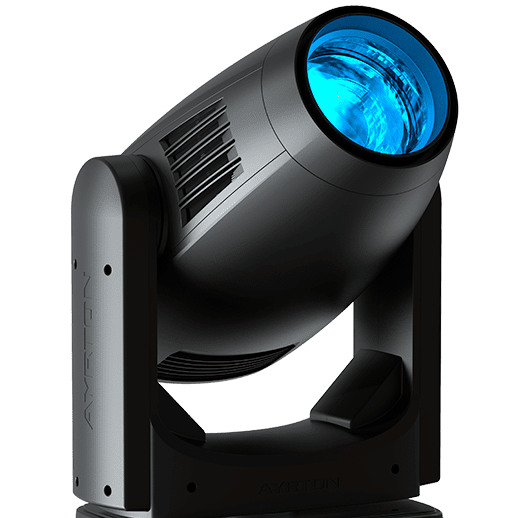

Ayrton Mistral S

The Ayrton Mistral S is a tour-quality LED moving head profile fixture that combines exceptional brightness, precision framing, and comprehensive effects in a compact, lightweight design. Powered by a 560 W RGBW LED engine, it delivers output comparable to high-end discharge fixtures while offering extended service life, lightning-fast startup, and significantly lower operational costs. With a zoom range of 5° to 50°, the Mistral S is built for versatility: it can punch tight beams for aerial effects or deliver broad washes for large stage and scenic applications. Its optical system includes dual high-efficiency glass lenses that maintain crisp projection and uniform output through the zoom range, delivering sharp beam definition ideal for high-impact lighting designs.

The Mistral S features a four-blade framing shutter system that provides precision beam control and unprecedented creative potential. Each shutter blade moves independently with smooth, accurate action and can rotate through ±60°, allowing for angled framing cuts, complex mid-air shapes, or soft feathered edging. Designers can layer these shutters to create dynamic beam effects like rotating shadows or cropping. Complementing this is a selection of optical tools: two gobo wheels (one rotating/indexable, one static), a rotating 3-facet prism, dual frost filters (light and heavy), a motorized iris, and a high-speed strobe. These tools, combined with fast pan/tilt movement and 16-bit dimming curves, offer designers cinematic effects without compromise.

Color control on the Mistral S is equally powerful, featuring a full CMY + CTO mixing system that enables designers to dial in anything from true whites to pastel shades and deep saturated tones. An additional color wheel provides access to seven fixed dichroic filters, further expanding the palette. The fixture supports DMX, RDM, Art‑Net, and sACN protocols, and includes a sleek onboard touchscreen interface for addressing, configuration, and firmware updates. Restoration to default or safety blackout can be initiated remotely, thanks to RDM and network control, streamlining system management during complex events. Despite its rich feature set, the unit remains lightweight (under 32 kg), road-ready, and serviceable via fast lamp-free design.

In sum, the Ayrton Mistral S is a high-lumen, fully featured LED framing and spot fixture suited to demanding lighting scenarios such as touring concerts, theater productions, corporate shows, festivals, and broadcast events. Its powerful LED engine and advanced optics ensure brilliant mid-air visuals, while its framing system and effects arsenal offer unmatched creative freedom. Neat handling, quiet performance, and touring-grade durability make it a favorite for professionals seeking a compact, high-output profile capable of delivering dynamic visual storytelling at scale.
