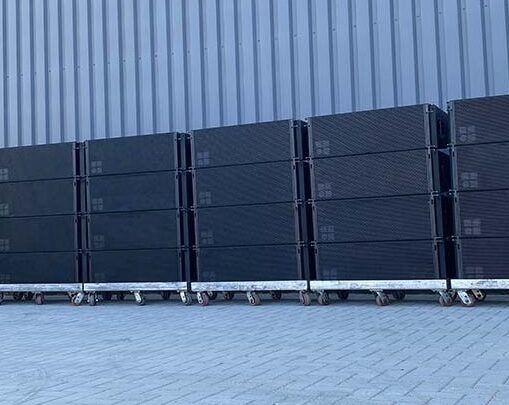

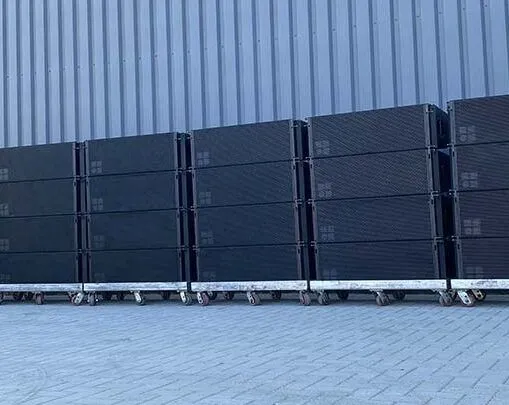

D&B Audiotechnik J8 System

The D&B Audiotechnik J8 system and J12 are part of the J-Series line array loudspeakers, known for their high performance, reliability, and versatile applications in large-scale sound reinforcement. The J8 features a 3-way active design with two 12-inch neodymium drivers, a horn-loaded 10-inch midrange driver, and two 1.4-inch exit compression drivers. This configuration allows the J8 to deliver high sound pressure levels with precise control and minimal distortion, making it suitable for both indoor and outdoor concerts, theaters, and large venues.

The D&B Audiotechnik J12, while sharing many of the same components and design principles as the J8, incorporates a wider horizontal dispersion of 120 degrees compared to the J8’s 80 degrees. This wider coverage is particularly useful in venues where a broader audience area needs to be covered with consistent sound quality. Both models utilize D&B’s advanced waveguide technology, ensuring uniform sound dispersion and phase coherence across the entire frequency range. The J8 and J12 are also designed to be compatible with the D&B ArrayCalc software, facilitating precise system planning and optimization.

In terms of build and integration, the J8 and J12 are constructed with robust materials to withstand the rigors of touring and installation. They feature a sophisticated rigging system that allows for quick and secure setup, ensuring consistent performance and safety. The cabinets are coated with a durable weather-resistant finish, making them suitable for various environmental conditions. Together, the J8 and J12 offer a flexible and powerful solution for professional audio engineers seeking high-fidelity sound reinforcement in a wide range of applications.
