D&B Audiotechnik V-Series Set

The d&b audiotechnik V-Series set has a line of high-performance loudspeakers designed for professional sound reinforcement in concert venues, theaters, and large event spaces. Known for delivering exceptional audio clarity, power, and versatility, the V-Series lineup includes the V8 and V12 line array loudspeakers, as well as the V-SUB subwoofer. This series incorporates d&b’s renowned engineering to provide consistent sound quality with advanced driver technology and precisely tailored waveguides, making it a preferred choice for sound engineers and production teams seeking reliable performance in diverse applications.

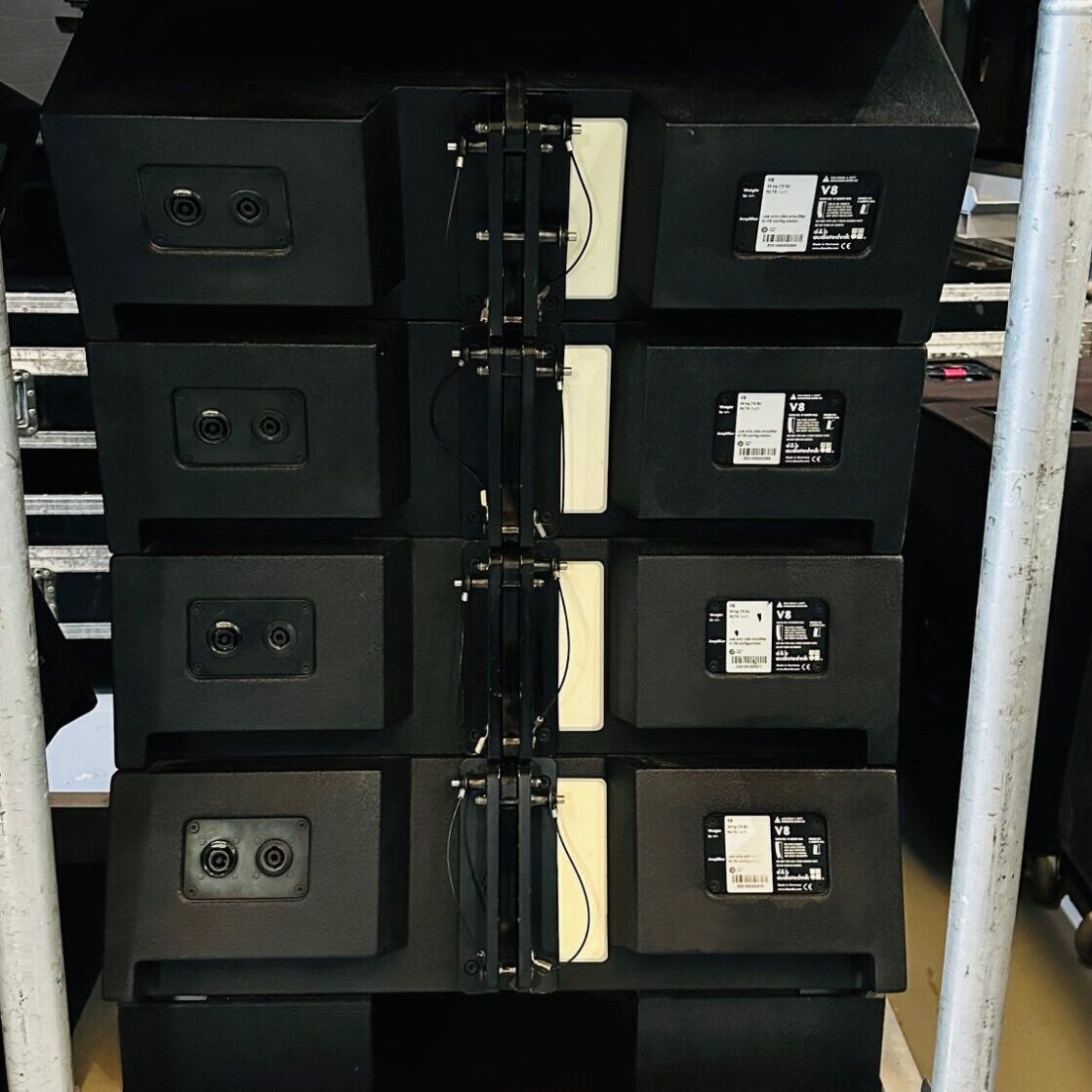

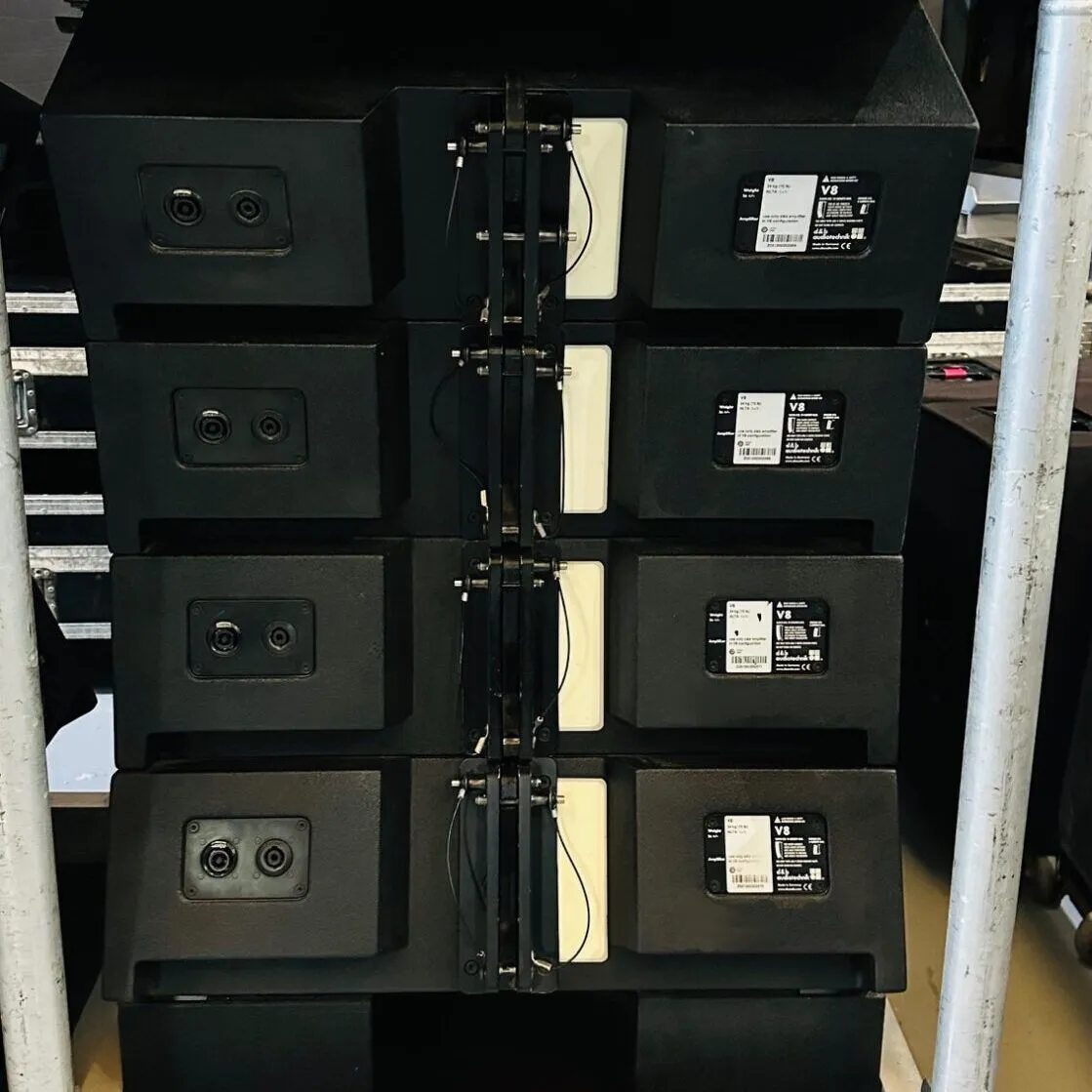

The V8 and V12 loudspeakers share a three-way passive design featuring dual 10-inch low-frequency drivers, a single 8-inch midrange driver, and a 1.4-inch compression driver for high frequencies. These elements are integrated into a symmetrical arrangement to enhance horizontal dispersion and ensure uniform sound coverage across the listening area. The V8 offers a 80° horizontal dispersion pattern, while the V12 provides a broader 120°, allowing sound engineers to select the model that best matches the coverage requirements of their specific venue or event. This adaptability makes the V-Series suitable for various types of deployments, from front-of-house main arrays to side fills or down fills in larger configurations.

The V-Series loudspeakers are constructed from durable, lightweight wood enclosures, allowing for easy transportation and efficient rigging. Each cabinet is designed for simple compatibility with d&b’s rigging systems, enabling quick assembly and seamless integration with other d&b systems. The accompanying V-SUB subwoofer complements the line array with deep, impactful bass response. Featuring an 18-inch driver and a forward-facing design paired with a 12-inch driver in a cardioid setup, the V-SUB helps manage low-frequency dispersion, ensuring clear, controlled bass without excessive noise behind the system.

One of the standout features of the V-Series set is its compatibility with d&b audiotechnik’s advanced amplification and processing solutions, including the D20, D40, and flagship D80 amplifiers. These amplifiers offer tailored presets for V-Series speakers, providing optimized performance and ease of use. The integration with d&b’s proprietary ArrayProcessing technology further enhances system performance by enabling precise optimization of frequency response and SPL (sound pressure level) throughout the audience area. This technology ensures consistent audio quality, even in challenging acoustic environments.
