D&B J-System

The d&b audiotechnik J-Series, often referred to simply as the “J System,” is one of the most renowned and respected line array systems in the professional audio industry. Designed for large-scale sound reinforcement applications, the d&b J System is a comprehensive solution that delivers powerful, precise, and consistent audio performance across a wide range of venues, from stadiums and arenas to outdoor festivals and concert tours. The system is known for its exceptional sound quality, high output capabilities, and versatile configuration options, making it a go-to choice for sound engineers and production companies around the world.

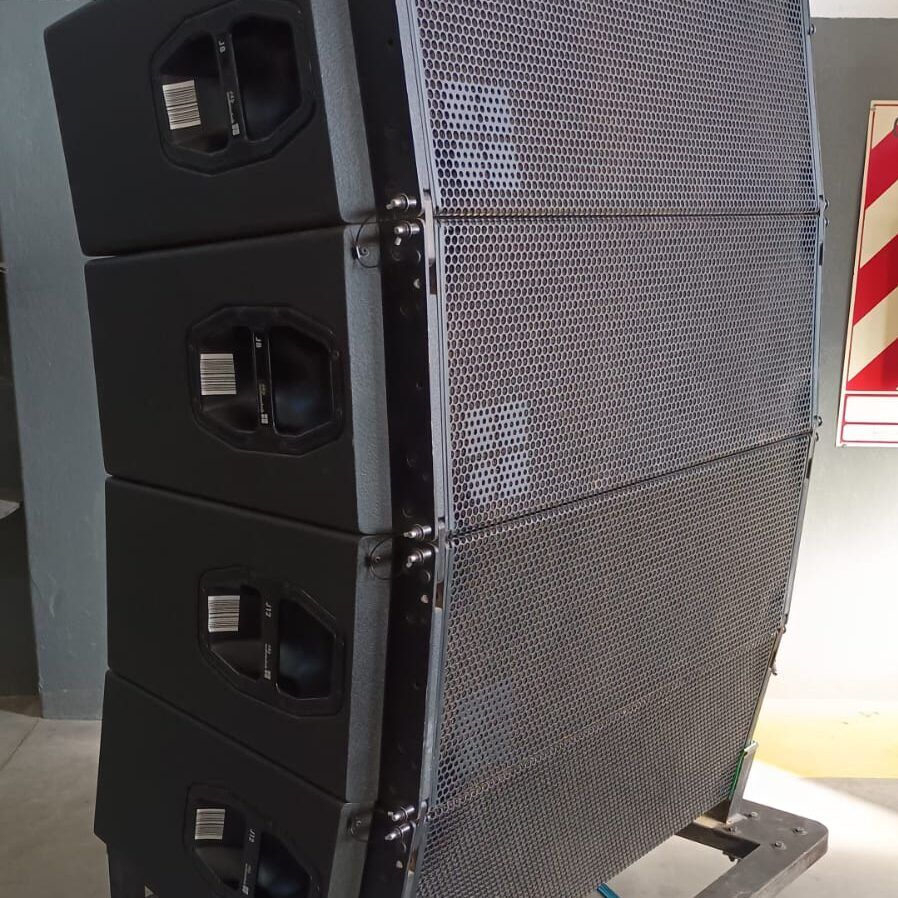

At the heart of the d&b J System are the J8 and J12 loudspeakers, which form the main line array elements. The J8 is designed with a horizontal dispersion of 80 degrees, while the J12 offers a wider 120-degree dispersion, allowing for flexible coverage depending on the requirements of the venue. Both models feature two 12-inch neodymium LF drivers, a 10-inch MF driver, and two 1.4-inch exit HF compression drivers mounted on a waveguide. This three-way design ensures that the J System delivers a balanced and coherent sound across the entire frequency spectrum, with deep, controlled bass, clear midrange, and smooth, extended high frequencies.

In terms of deployment, the J System is known for its efficient rigging and setup process. The loudspeakers are designed with d&b’s patented rigging hardware, which allows for quick and secure assembly of the array. This is particularly beneficial for touring applications, where time and efficiency are critical. The J System’s modular design also allows it to be scaled to suit different venue sizes, making it a versatile solution for a wide range of events, from smaller concerts to massive outdoor festivals.

The d&b J System is designed for seamless integration and ease of use. It is powered by d&b’s D12 and D80 amplifiers, which are equipped with sophisticated processing capabilities, including crossover, EQ, delay, and protection functions. The amplifiers are also networkable, allowing for remote control and monitoring via d&b’s R1 Remote control software. This level of control and flexibility ensures that the J System can be precisely tuned and optimized for any acoustic environment, delivering consistent and high-quality sound performance regardless of the venue’s size or shape.
