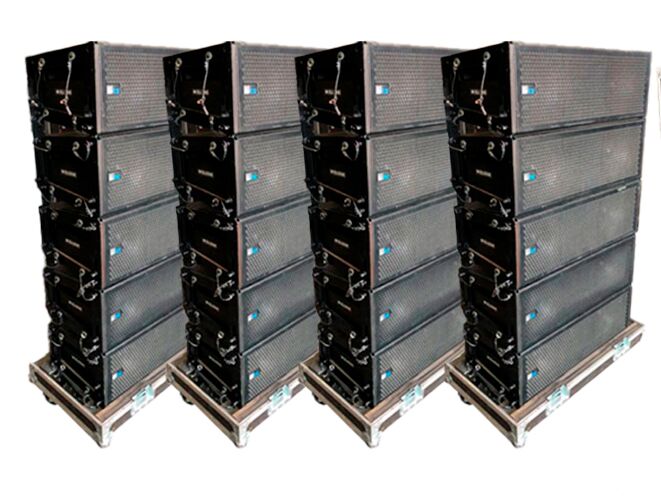

Meyer Sound Melodie System

The Meyer Sound Melodie System is part of the highly regarded M Series of line array speakers, designed to deliver powerful, clear, and even sound coverage in both small and medium-sized venues. Known for its compact size, yet robust performance, the Melodie system is ideal for use in a variety of applications including concert halls, theaters, corporate events, and houses of worship. With its versatility, precision, and scalability, the Melodie system is often chosen for scenarios where both audio clarity and aesthetic discretion are important.

At the core of the Meyer Sound Melodie system is its self-powered, two-way loudspeaker design. Each Melodie unit is equipped with two 8-inch cone low-frequency drivers and a single 3-inch diaphragm compression driver for high frequencies. These components are arranged in a bi-amplified configuration, with an internal amplifier providing separate power for the low and high-frequency drivers. This design not only ensures efficient and accurate sound reproduction but also eliminates the need for external amplifiers, streamlining the setup process and reducing the overall system footprint. The result is a highly efficient system capable of producing a frequency range from 70 Hz to 18 kHz with a maximum peak SPL of 131 dB.

One of the standout features of the Melodie system is its flexibility in configuration. The loudspeakers are designed to be used in a variety of setups, either flown or ground-stacked, depending on the venue’s requirements. Each unit can be seamlessly arrayed with others, allowing for scalable solutions that suit both small and larger venues. Meyer Sound’s sophisticated rigging system ensures that arrays can be deployed quickly and safely, making it a preferred choice for both touring applications and permanent installations. Additionally, the system is often paired with Meyer Sound’s 600-HP subwoofers for extended low-end response, providing a full-range audio experience even in the most demanding environments.

In terms of sound quality, the Melodie system excels in delivering consistent, clear audio across a wide coverage area. It features a 100-degree horizontal and tightly controlled vertical dispersion pattern, which helps minimize sound bleed into unwanted areas while maintaining even coverage for the audience. Meyer Sound’s patented REM (Reduced Efficiency Matching) technology ensures uniform coverage by maintaining the same SPL at varying distances from the array. This makes the Melodie system especially effective in acoustically challenging spaces where maintaining intelligibility and sound quality throughout the venue can be difficult.
