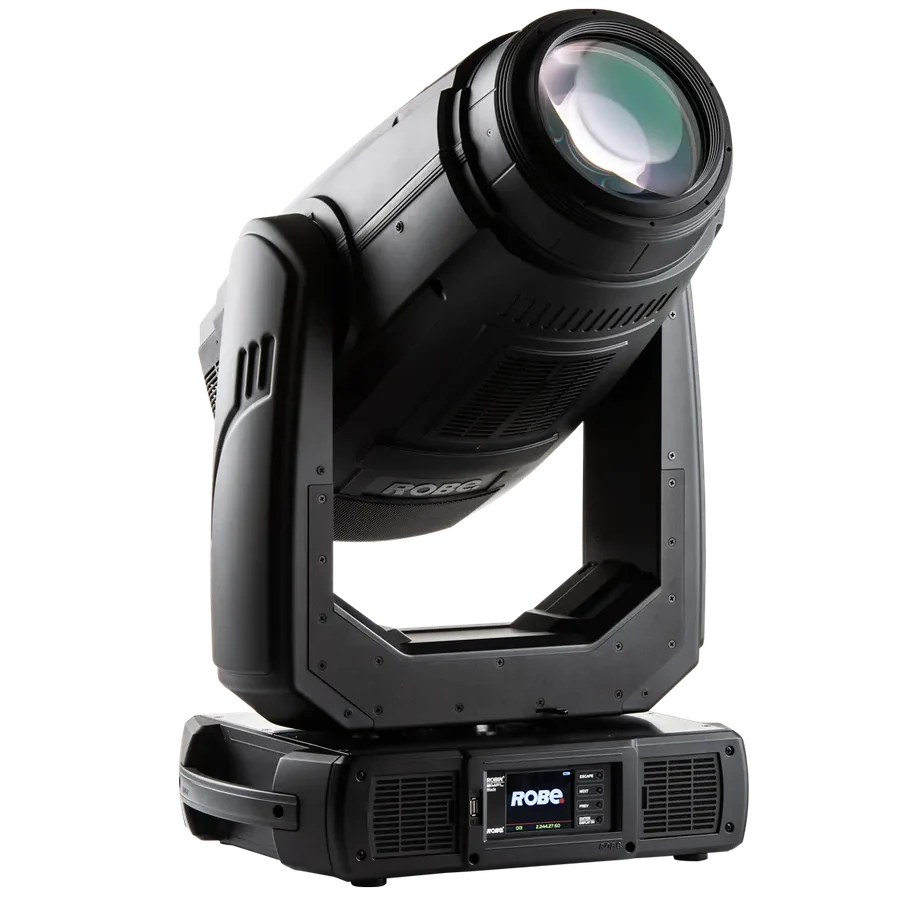

Robe Robin BMFL Blade

The Robe Robin BMFL Blade is a premium moving head luminaire engineered for professional lighting environments that demand precision, dynamic versatility, and high-impact visual output. It leverages a high-intensity 1700 W OSRAM Lok-it! HTI lamp, producing approximately 40,000 lumens of light output—ideal for large concert stages, touring productions, theatrical environments, and high-end corporate events. The fixture’s sharp and bright beam retains clarity over long distances, making it perfect for environments where projecting strong, focused light is essential.

Equipped with a sophisticated framing system, the BMFL Blade features four fast shutter blades, each with independent control, as well as rotation capability up to 90 degrees. This allows for intricate beam shaping—from precise rectangles to triangular cuts or complete blackouts—all achievable in real time. It includes two gobo wheels: one with six rotating, indexable gobos, and another with eight fixed gobos, enabling highly creative pattern projection. For additional texture and motion, it offers an animation wheel, circular and linear prisms (rotating and indexable), and frost options ranging from light to heavy, which transform hard-edged beams into soft washes.

The fixture delivers full CMY color mixing with a variable CTO filter (2,700–6,000 K), along with two color wheels—one static and one featuring replaceable dichroic colors—for flexibility in hue selection. Precision motion and framing are enhanced by Robe’s EMS™ (Electronic Motion Stabilizer) technology, ensuring accurate and jitter-free pan/tilt movement, essential for live events, TV production, and architectural effects. Control options include DMX, RDM, Art‑Net, and sACN, offering integration into modern lighting networks.

Housed in a tour-ready casing, the Robe BMFL Blade is built to endure frequent transport with its rugged construction and quiet, efficient cooling system. It measures around 38 kg (84 lbs) and comes with a bolster-mounted yoke. Physical access points are thoughtfully laid for fast lamp changes and easy maintenance. A bright menu display provides convenient onsite configuration. Despite its power, the fixture balances output and precision, making it practical for both defined beam work and wash applications.

In summary, the Robe Robin BMFL Blade is a standout fixture that blends intense output, cutting-edge framing with rotations, and creative optics in a robust, stage-ready package. It’s an exceptional tool for lighting designers and programmers seeking maximum control over shape, motion, and atmosphere for immersive, high-end productions.
