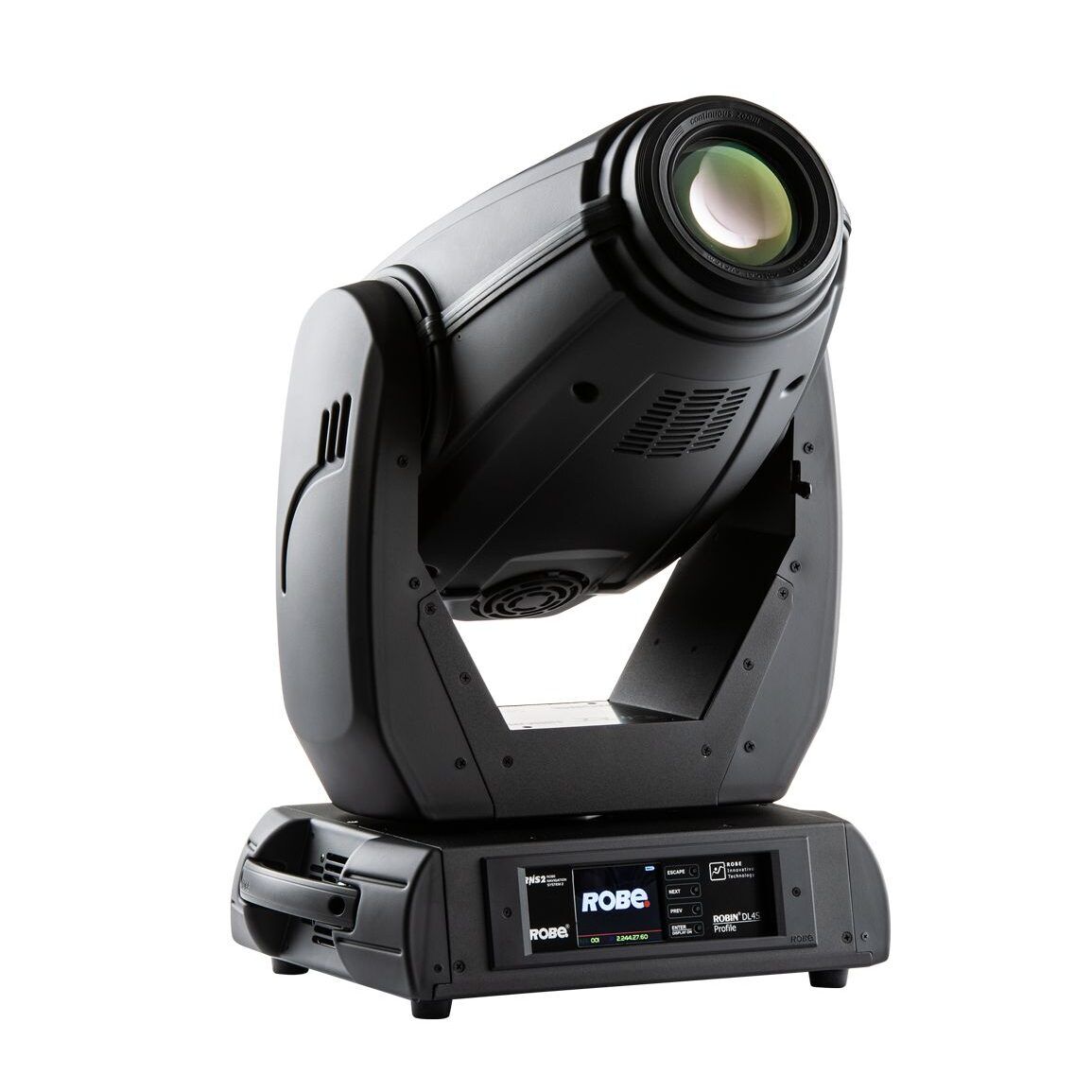

Robe Robin DL4S Profile

The Robe Robin DL4S Profile is a professional LED moving head fixture that blends powerful output with precision optics and rich creative control. Built around a 480W RGBW LED engine, this fixture has an output comparable to traditional 1,200W discharge units, replacing bulky lamps with eco-friendly LEDs that deliver saturated colors, true whites (2,700–8,000K), and smooth dimming curves thanks to 18-bit internal dimming resolution. A wide zoom range of 10°–45° enables it to serve both as a tight spot and a broader wash fixture. Despite its LED source, the DL4S performs without the multi-shadowing often seen in LED fixtures, maintaining crisp edge quality and visual clarity.

A key strength of the DL4S is its advanced framing shutter system. It features four ultra-smooth blades that can be individually positioned and collectively rotated ±45°, providing precise beam shaping with sharp edges or soft framing—ideal for masking performers, striking architectural trims, or artistic cuts. This framing module also supports dynamic effects via pre-programmed sequences, expanding creative possibility beyond simple beam shaping. Complementing this are two gobo wheels (one rotating/indexable, one static), an animation wheel for textures and movement, a rotating 3-facet prism, motorized iris, and variable frost for softening the output. Additional features include an electronic strobe (up to 20 Hz), random pulse sequences, and remote focus & zoom for dynamic real-time operation.

Further enhancing its versatility, the DL4S offers wide-ranging color control. It supports both RGBW and CMY color mixing, variable CTO, tungsten emulation effects, and a virtual color wheel with 237 calibrated presets—including various whites. Richie white color calibration, tungsten emulation, and smooth fades make it visually consistent and cinematic. Control-wise, it supports DMX-512, RDM, Art-Net, MA Net/Net2, sACN, and wireless CRMX. The fixture features an intuitive QVGA touch-screen menu (RNS2 system) with gravity detection, service logs, and stand-alone mode with onboard programs—useful for quick deployments without an external console.

Built for touring and professional use, the DL4S Profile is rugged and reliable, with a weight of approximately 22.7 kg and robust rigging options. Pan/tilt movement is responsive and smooth (540°/280° with precise tracking and correction). Cooling is quiet yet efficient, making it suitable for both on-camera broadcast and live events where sound sensitivity is critical. Maintenance is simplified with easily accessible components and LED lifespan projected at 20,000 hours.

In summary, the Robe Robin DL4S Profile is a compact powerhouse that offers studio-quality performance, framing precision, and rich creative features in a dependable, tour-ready form. Whether framing talent or cutting architectural details, its versatility in optics, color, and networked control make it a standout for designers seeking maximum impact without compromise.
