Yamaha RIVAGE PM3 Console Package

$59,500.00

Manufacturing date: Jan 2024

Includes:

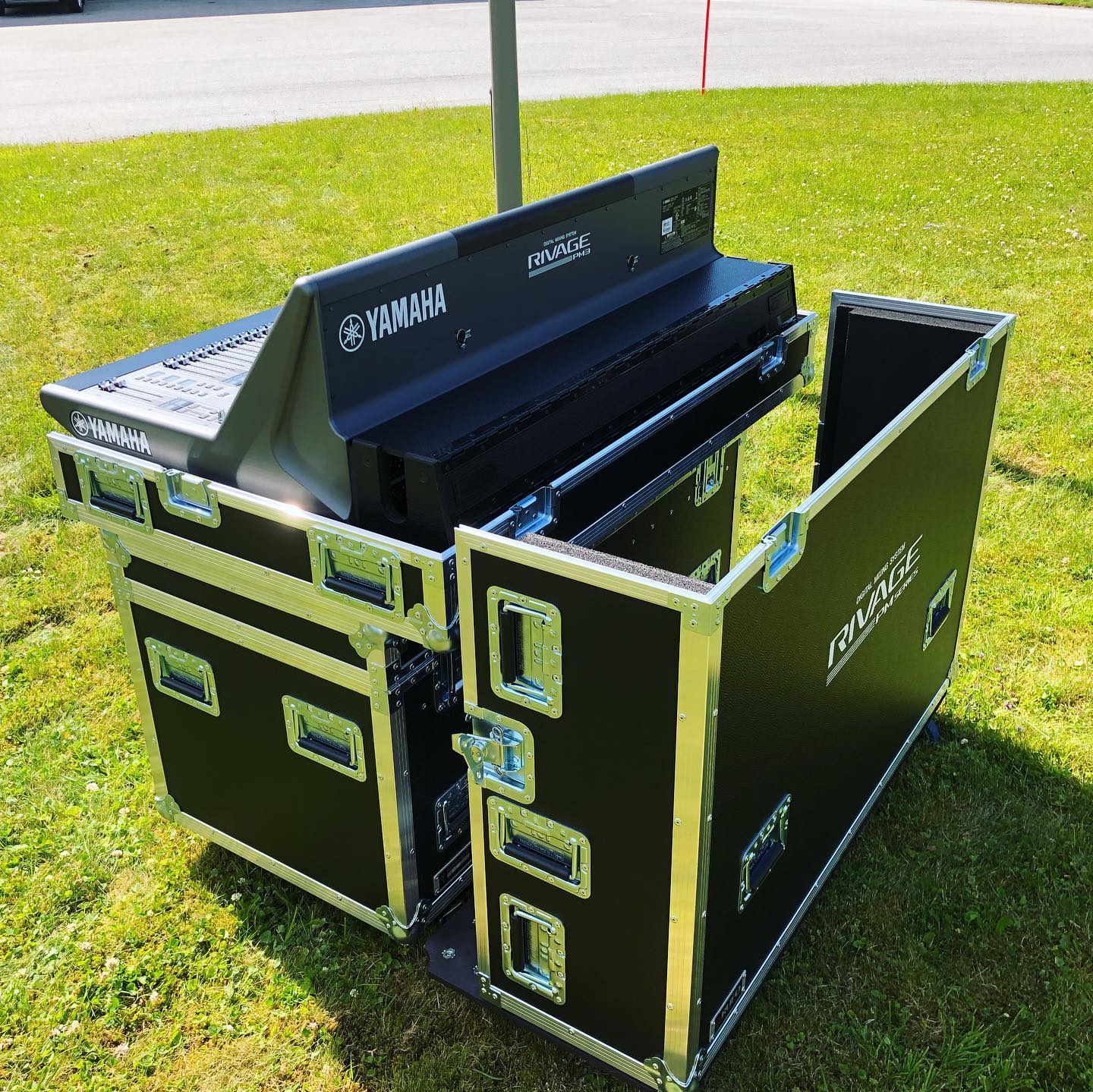

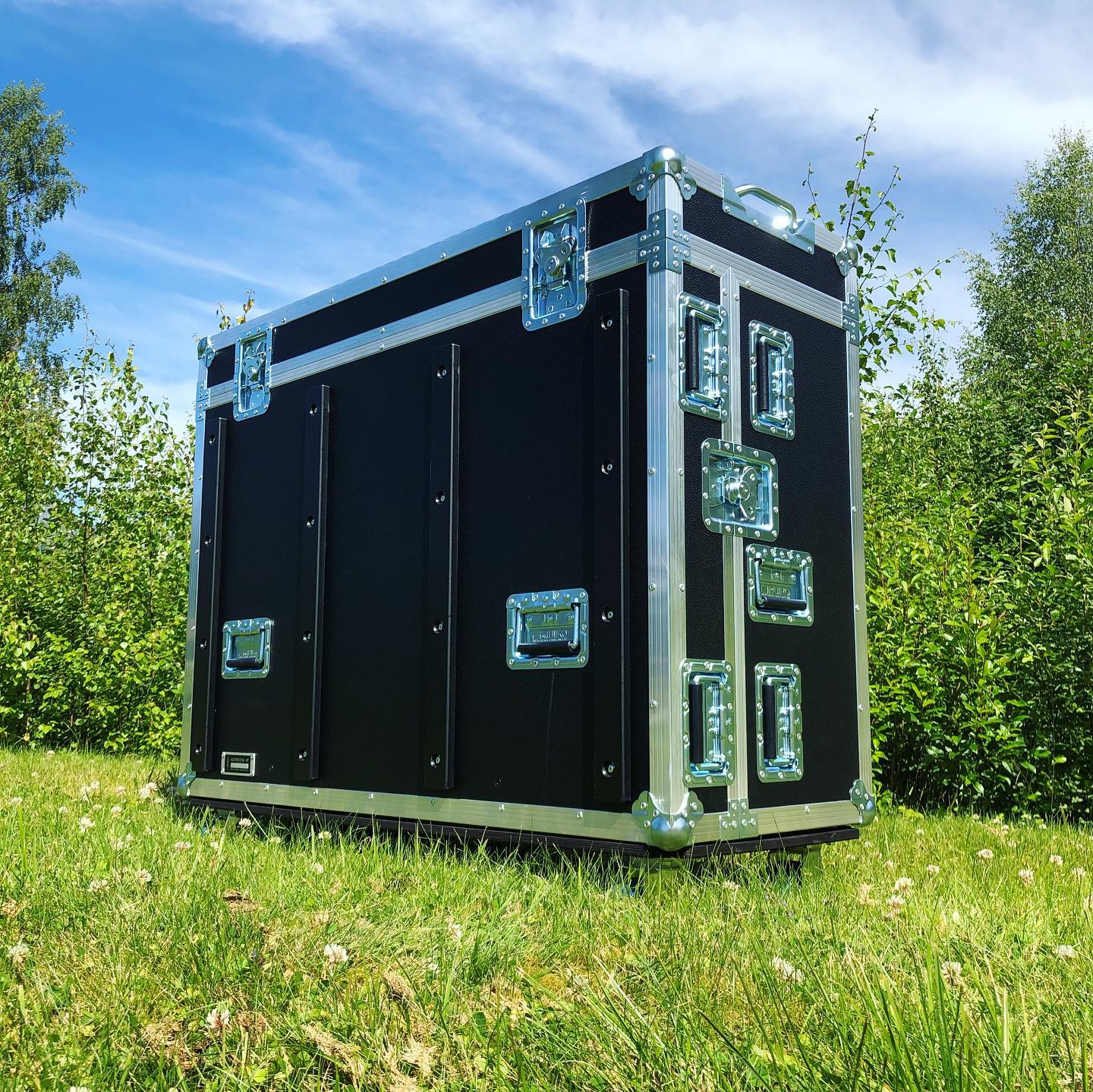

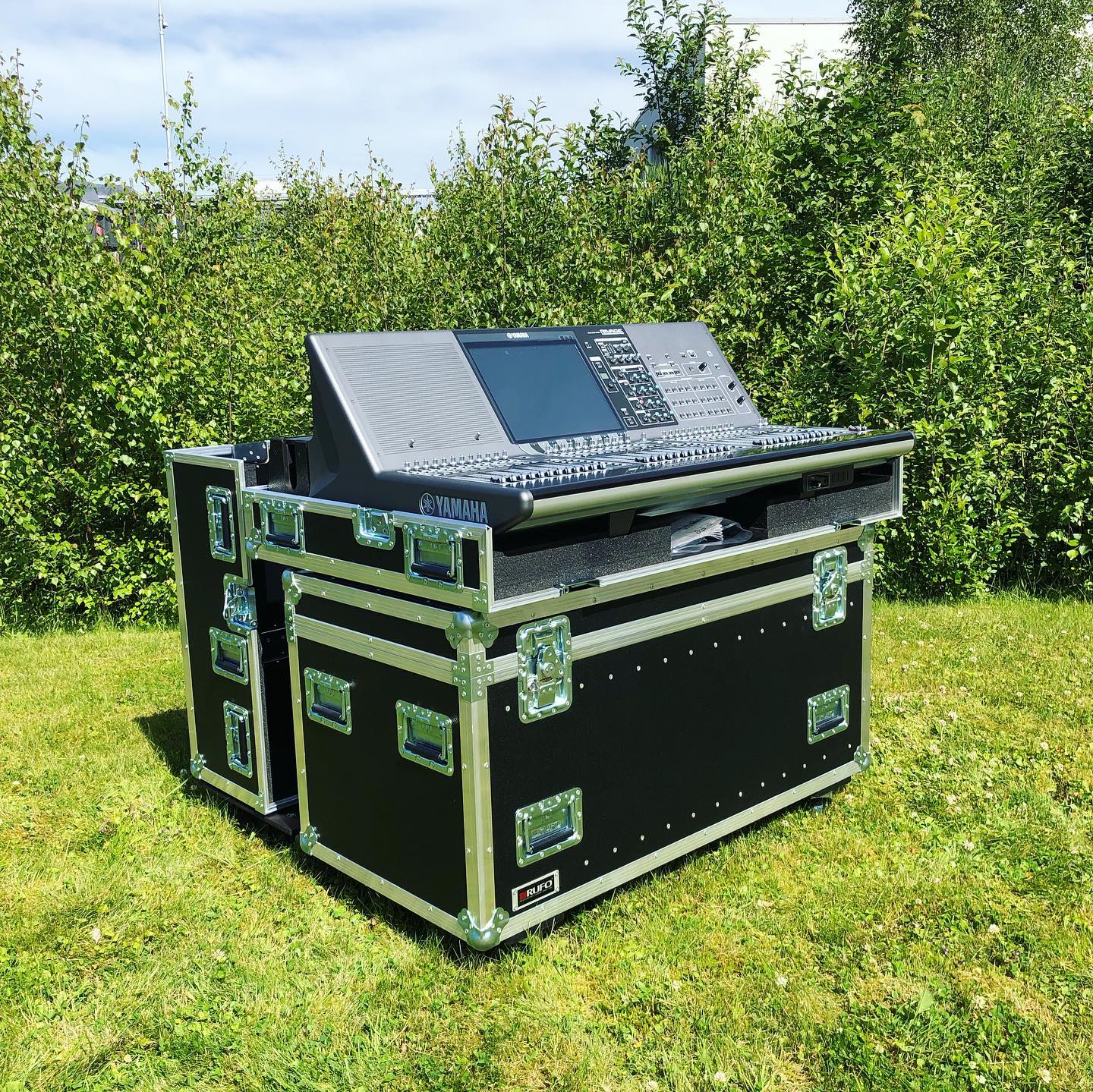

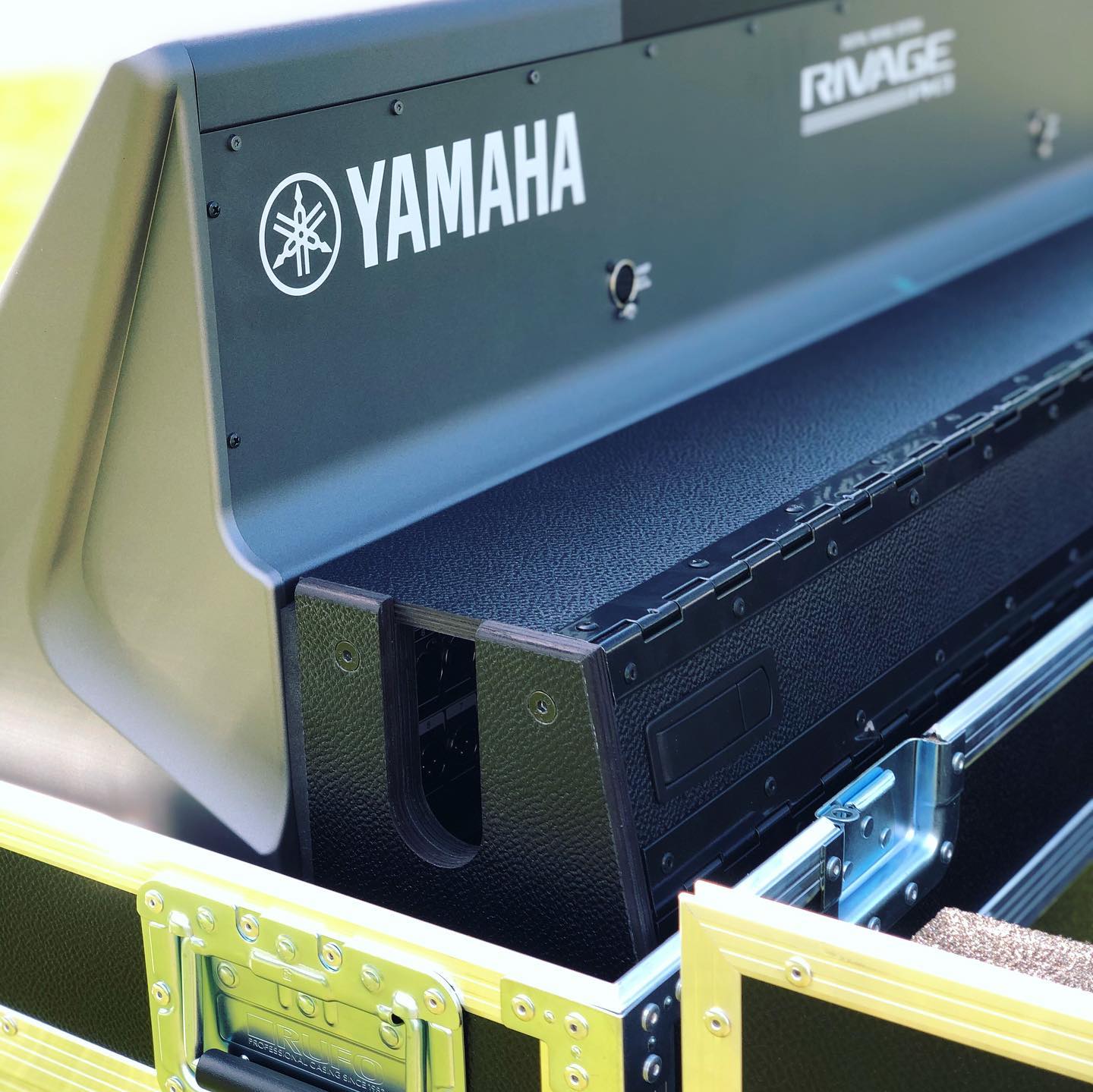

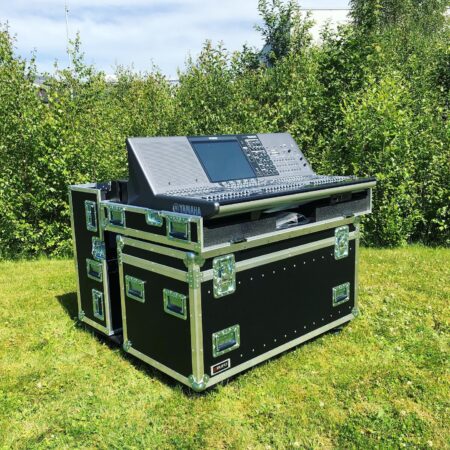

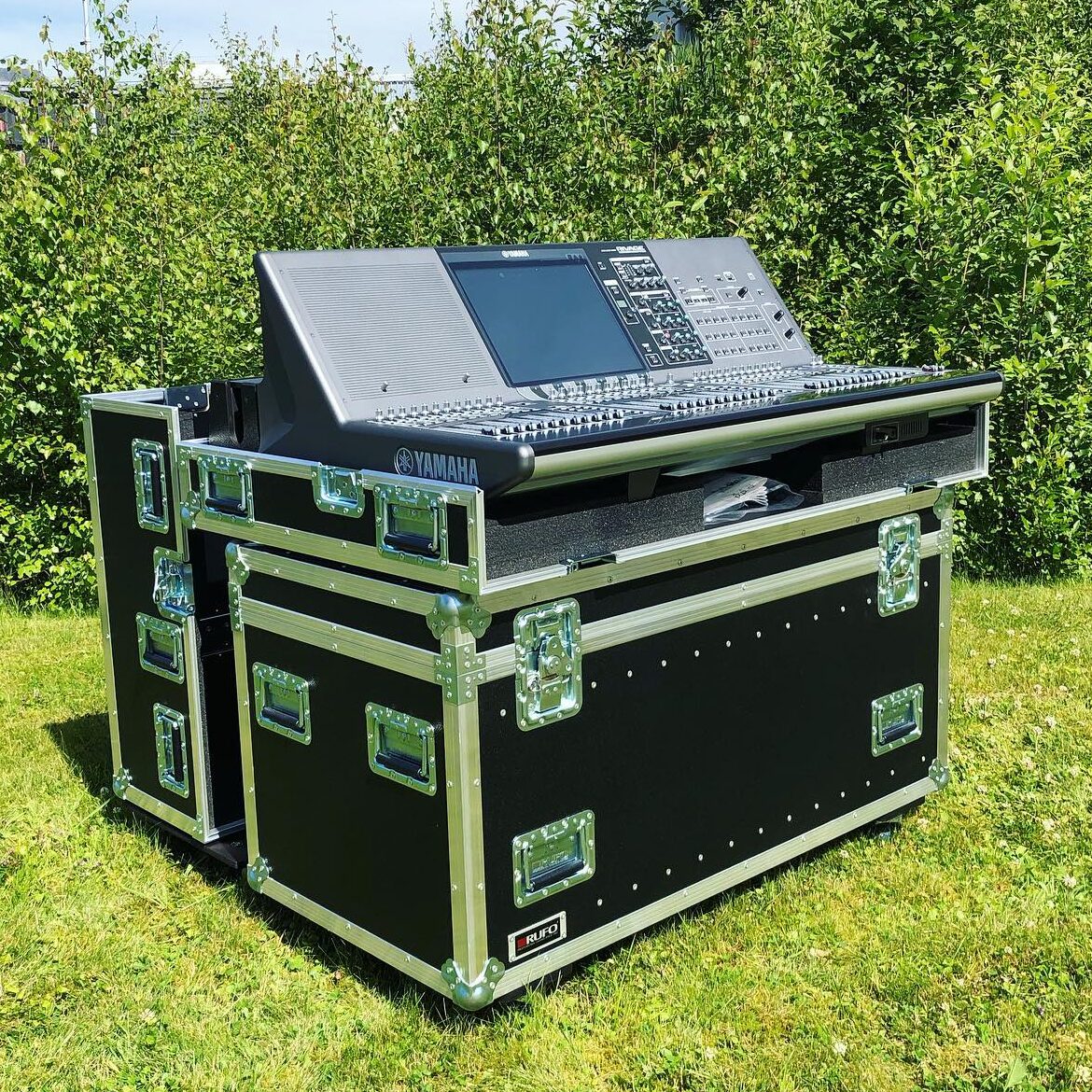

-Custom Build Flightcase
-Yamaha DSP-RX processing unit 120 in/ 72 out
-Yamaha RIO3224-D2 I/O rack 32 in/16out
-Yamaha RIO3224-D2 I/O rack 16 in/08out
-2x Yamaha HY144D-SRC, 96khz 32bi

Call: +1(404) 682-3005

  The Yamaha RIVAGE PM3 is a streamlined yet fully professional digital mixing console developed for live sound engineers who require top-tier performance in a compact, tour-friendly format. As part of the RIVAGE series, the PM3 delivers the same audio quality, intuitive layout, and system flexibility as its larger counterparts, but in a more efficient footprint that fits a broader range of venues and production scenarios. It is ideal for high-end touring, broadcast, theaters, houses of worship, and corporate events where premium sound and dependable functionality are non-negotiable.

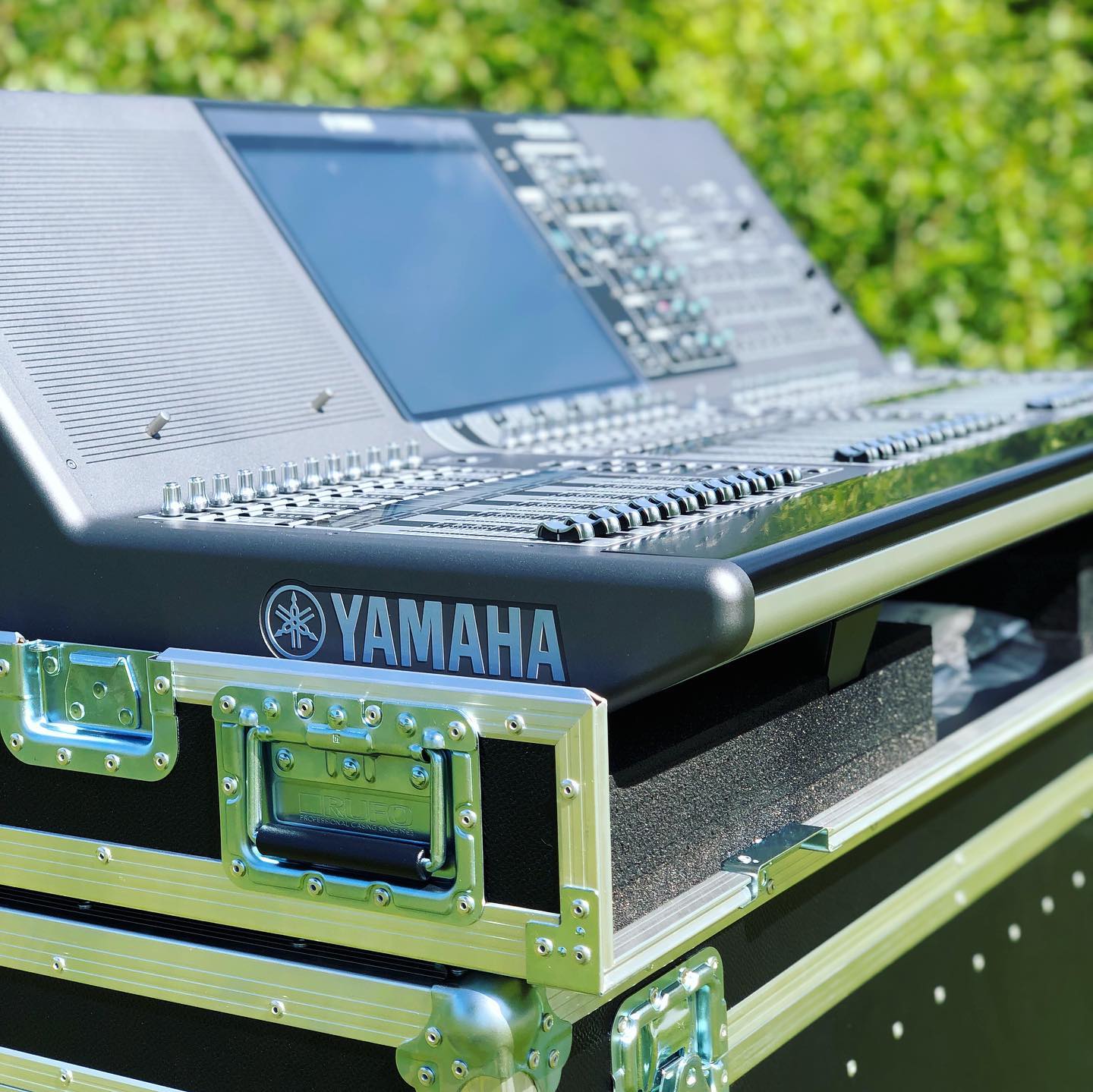

control surface, designated as the CS-R3, features a single 15-inch high-resolution multi-touch screen that provides quick, responsive access to mixing parameters, channel views, and system settings. Below the screen are 38 motorized faders divided into three bays of 12 channels each, plus two master faders, all of which are touch-sensitive and smooth to operate. The Selected Channel section includes a dedicated encoder panel with controls for EQ, dynamics, gain, and auxiliary sends, allowing fast, hands-on operation. This user-friendly layout is built to support the fast pace and high demands of live performance environments.

Internally, the Yamaha RIVAGE PM3 operates at 96 kHz sampling rate and utilizes Yamaha’s Hybrid Microphone Preamplifiers paired with their Virtual Circuit Modeling technology. This combination allows users to access accurate emulations of revered analog circuits, including vintage-style transformer coloration and harmonic saturation. Engineers can engage processing models such as Rupert Neve Designs’ SILK for added tonal warmth and character. The console includes eight local analog inputs and outputs, plus two expansion card slots for connectivity to various audio interfaces. Built-in USB ports enable multitrack recording and playback directly to external storage.

The PM3 integrates with Yamaha’s DSP-RX or DSP-RX-EX engines, allowing the system to scale up to 288 inputs, 72 mix buses, and 36 matrix buses depending on configuration. It supports TWINLANe and Dante networking protocols, offering reliable and flexible integration with stage boxes, personal monitoring systems, and third-party equipment. With a compact footprint and redundant power supplies built into the chassis, the Yamaha RIVAGE PM3 offers a sophisticated blend of portability, processing power, and sonic excellence, making it a reliable solution for complex, mission-critical productions.
