DiGiCo SD8 with MADI Rack

The DiGiCo SD8 stands as one of the most versatile digital mixing consoles ever built for touring and installed sound reinforcement, built around the Stealth Digital Signal Processing architecture that DiGiCo has refined over decades of live performance. At its heart are 120 fully processed input channels running at 48kHz or 96kHz, each channel offering a complete signal chain with channel delay, single and multi-channel presets, dual insert points, and steep 24dB/octave hi- and lo-pass filters. Alongside these inputs, the console provides 48 auxiliary and sub-group busses, every one of them fully processed, plus a 16×16 matrix with full processing capability that gives system designers exceptional routing flexibility for complex multi-area venues, broadcast feeds, and recording setups alike. The LR/LCR/LCRS master bus configuration makes it equally at home in large PA systems, multi-zone installed environments, and broadcast control rooms, and the 190 dynamic equalizers give engineers more precision EQ power than nearly any console in its class.

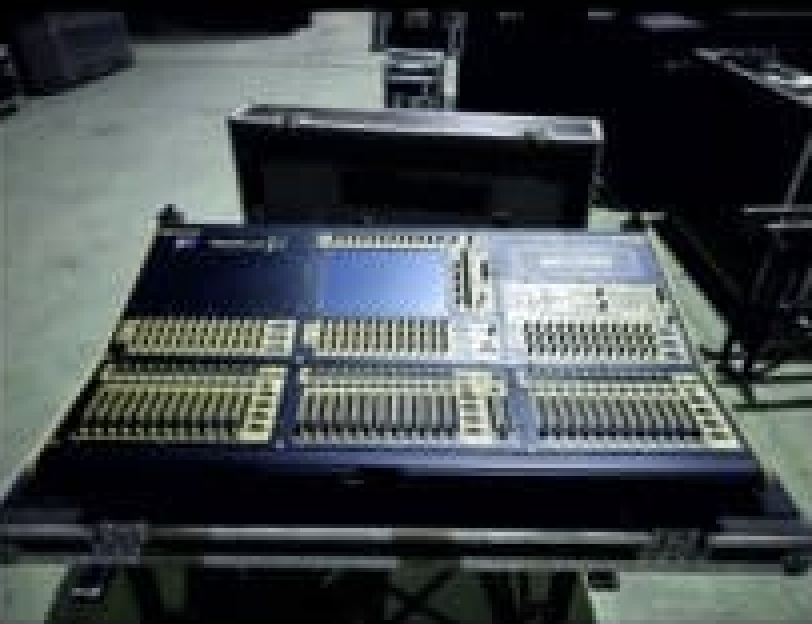

The worksurface is where the SD8 truly earns its reputation among professional FOH engineers. It is divided into three sections that can control 60 mono or stereo input channels at a time, 12 VCAs, and up to 24 mono or stereo output busses, with assignable channel layouts that let each engineer program the surface to match their exact workflow. User programmable macros take this customization further, letting frequently used functions and parameter groups be recalled with a single touch during a live show. The console can also connect to multiple input/output rack units via MADI links or, optionally, optical fibre, and it is capable of redundantly mirroring with another console, a level of fail-safe protection that tour operators and broadcast facilities value enormously. For teams upgrading from the original SD8, DiGiCo also offered the SD8-24, which kept the same powerful Stealth DSP engine and added 24 additional output busses for even densier multi-room configurations.

In practical terms, the SD8 has become a fixture on major tours, in broadcast studios, and in permanent installations around the world, and its reputation for rock-solid reliability is one of the strongest in the industry. Because the processing power is housed in dedicated DSP units separate from the surface, a touring rig can keep a spare console on hand and swap surfaces without losing patches, scenes, or settings, a workflow that has saved countless shows over the years. For buyers in the used market, an SD8 represents an exceptional value: the console’s channel count, dynamic EQ arsenal, and redundant architecture still match what many modern consoles offer, yet units at auction prices deliver flagship-level capability at a fraction of the cost. Whether deployed for a large tour, a festival site with multiple stages, or a broadcast facility, the DiGiCo SD8 remains a workhorse that professionals continue to trust with the most demanding mixes.
