Yamaha CL5 with RIO 3224 Racks Package

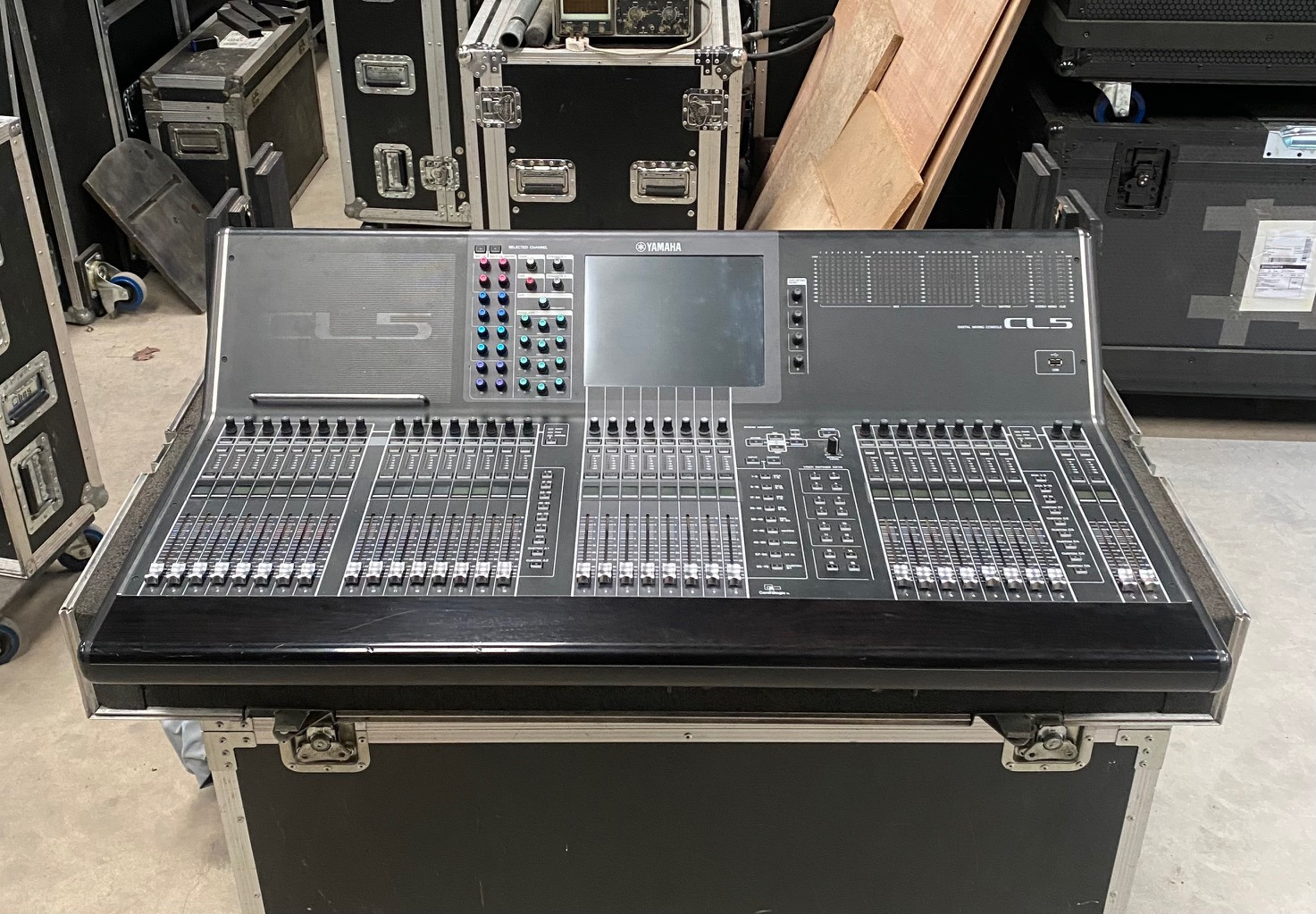

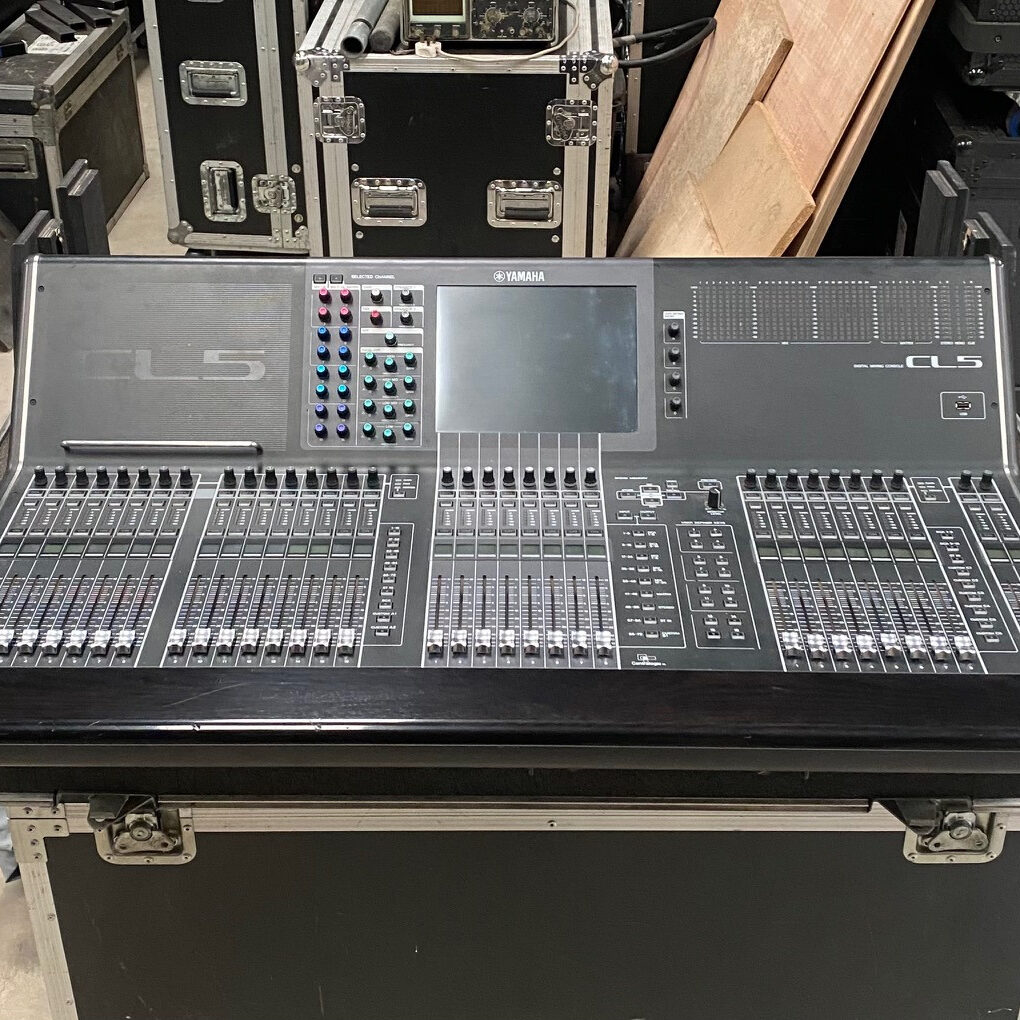

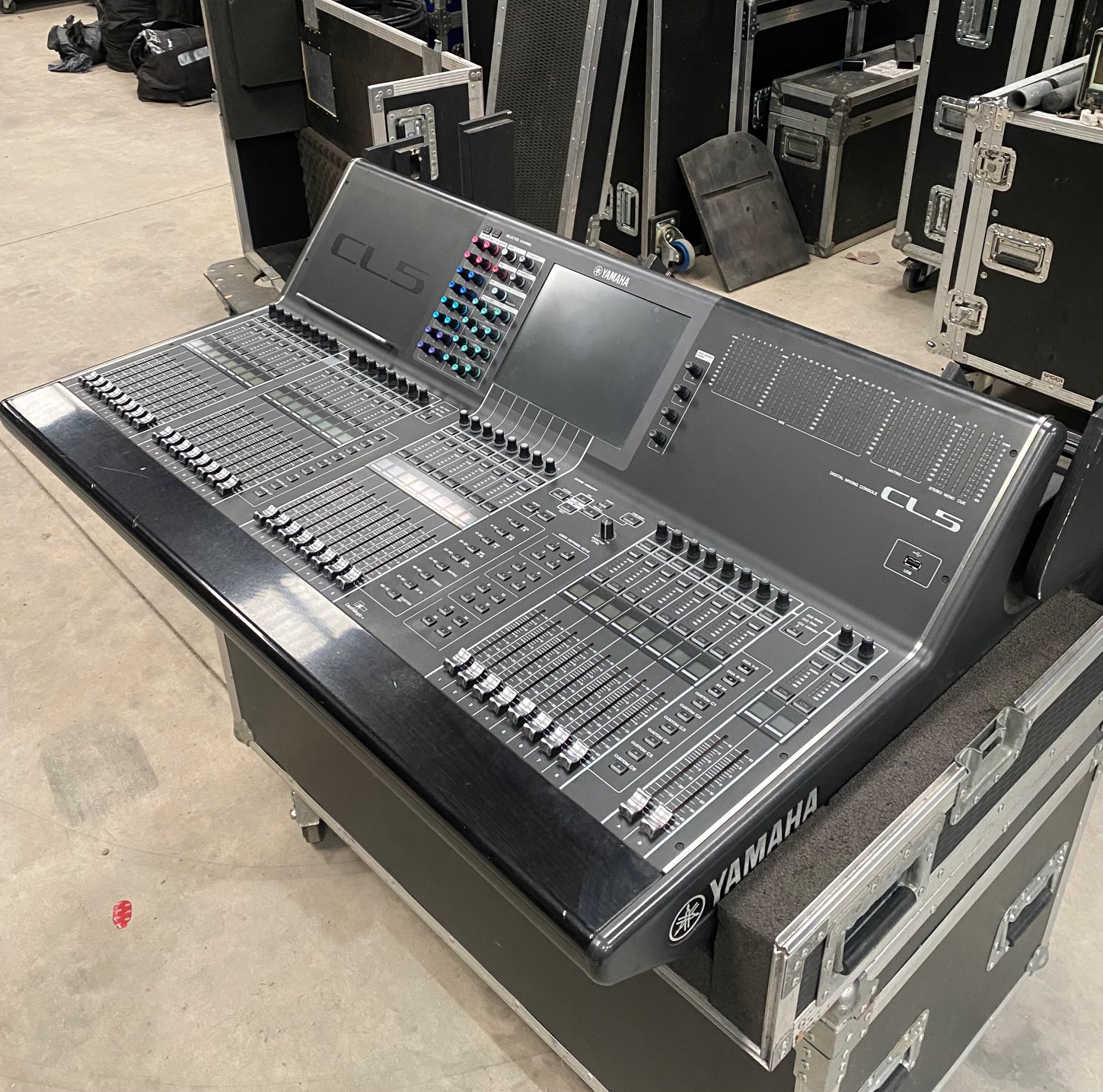

The Yamaha CL5 with RIO 3224-D I/O rack is a highly capable digital mixing system built for professional live sound, broadcast, and installation environments where reliability and flexibility are critical. The CL5 console features Yamaha’s Centralogic™ control interface, combining a large, responsive touch screen with a channel strip layout that keeps essential parameters within easy reach. This design allows engineers to move quickly and confidently, even in high-pressure show conditions. With up to 72 mono inputs and 8 stereo channels, along with a comprehensive mix bus structure, the console is well suited for complex productions that demand detailed control over multiple sources. Its onboard processing includes premium EQ, dynamics, and effects that provide polished, high-quality sound without the need for extensive outboard gear.

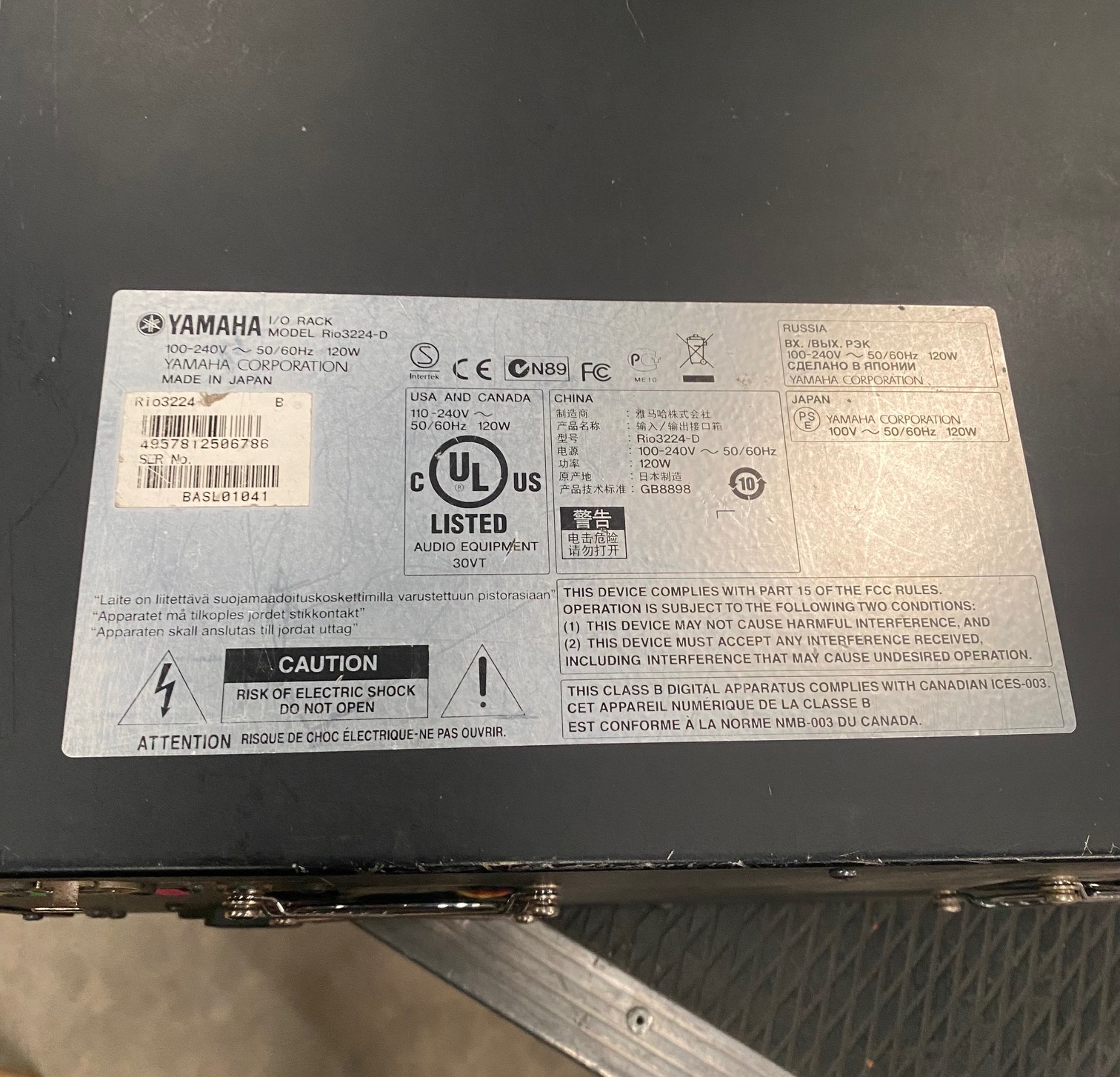

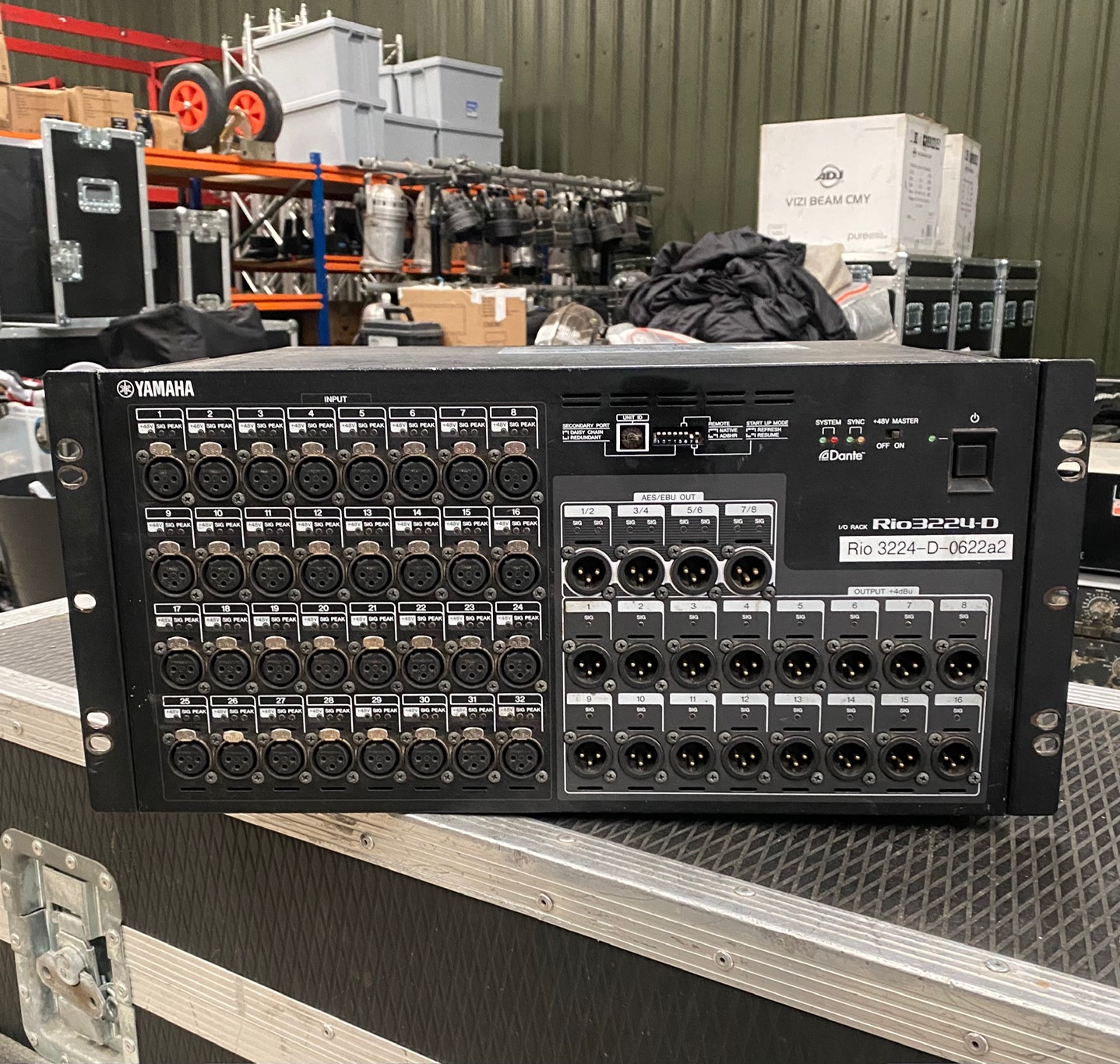

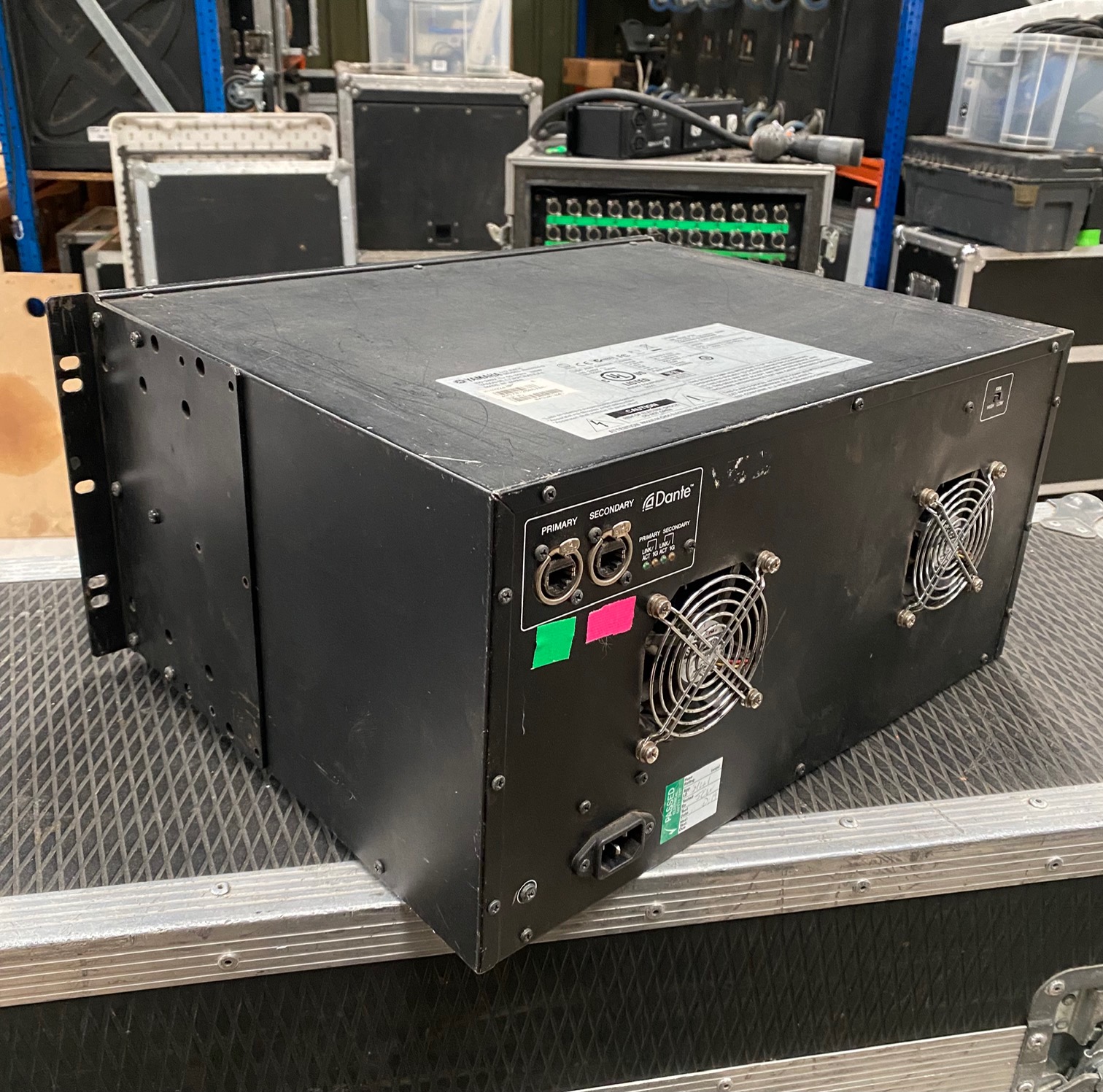

The Rio3224-D stage box serves as the backbone of the system’s remote I/O, offering 32 analog inputs and 16 analog outputs in a compact and rugged rackmount format. Connected via Dante networking, it enables clean, low-latency audio transmission over standard Ethernet, allowing front-of-house and stage equipment to be positioned with maximum flexibility. This makes it ideal for large venues, touring setups, and distributed audio systems where long cable runs would otherwise be impractical. The Rio unit also supports features like remote head amp control and gain compensation, which are essential for maintaining consistent levels when sharing inputs between multiple consoles, such as front-of-house and monitor desks.

Together, the Yamaha CL5 with RIO 3224-D create a seamless and scalable audio solution that adapts easily to a wide range of applications. The system is known for its stability and intuitive workflow, helping engineers focus more on the mix and less on navigation. Its integration within the Dante ecosystem also allows for expansion with additional I/O racks, recording systems, or networked devices, making it a future-proof investment for growing production needs. Whether deployed on tour, in a fixed installation, or as part of a broadcast setup, this combination delivers dependable performance, excellent sound quality, and the versatility required in today’s professional audio environments.
